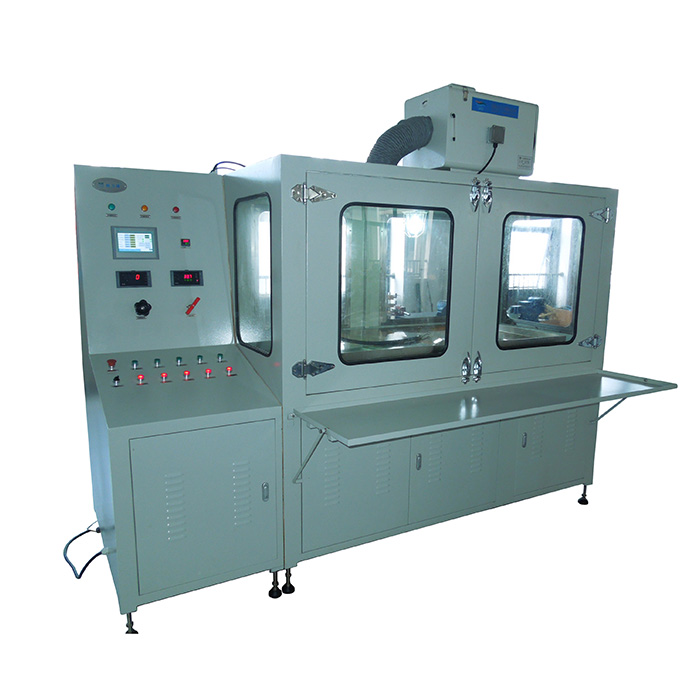

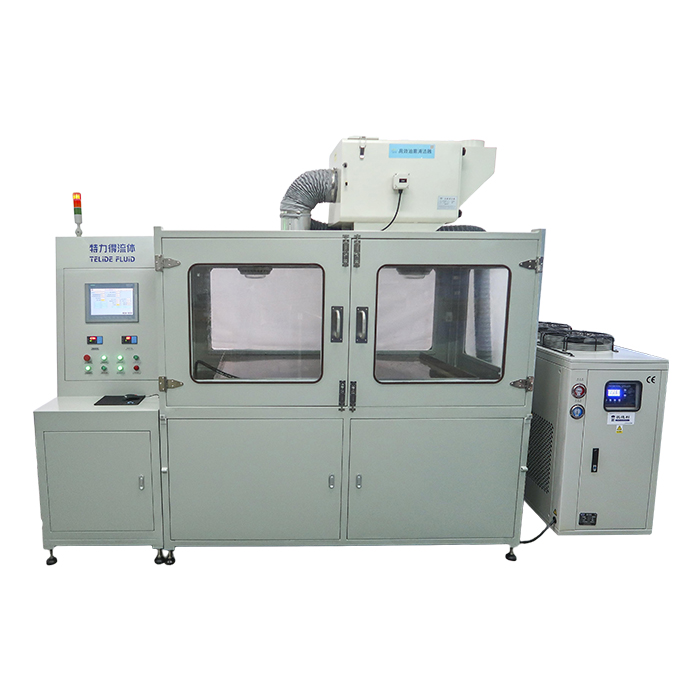

AGB、TGB、IGB lubrication oil comprehensive test bench TPU-5100

Application

Test AGB, TGB and IGB of the aviation engine under the set lubrication oil temperature and pressure, according to the requirements of aircraft maintenance manual.

Features

1. The first domestically developed product of its kind.
2. Ultra-long service life – equipment supplied in 2014 has been in use for over 10 years and remains reliable.
3. Accurate pressure and flow rate measurements even at high temperatures.
4. Rapid heating, with a cooling system that allows for quick cooling and precise temperature control.

Parameters

1. Medium: Engine oil; maximum operating temperature of the medium: 130 °C.
2. Maximum test pressure: 450 kPa.
3. Test flow rate range: 0.5–18 L/min.
4. Dimensions and weight: Internal dimensions of the test chamber/sealed chamber: 2000 (L) × 1000 (W) × 1000 (H) (mm).
5. Other: Flow rate test accuracy: ±0.5%.
